2006 Hummer H1
1
/
1

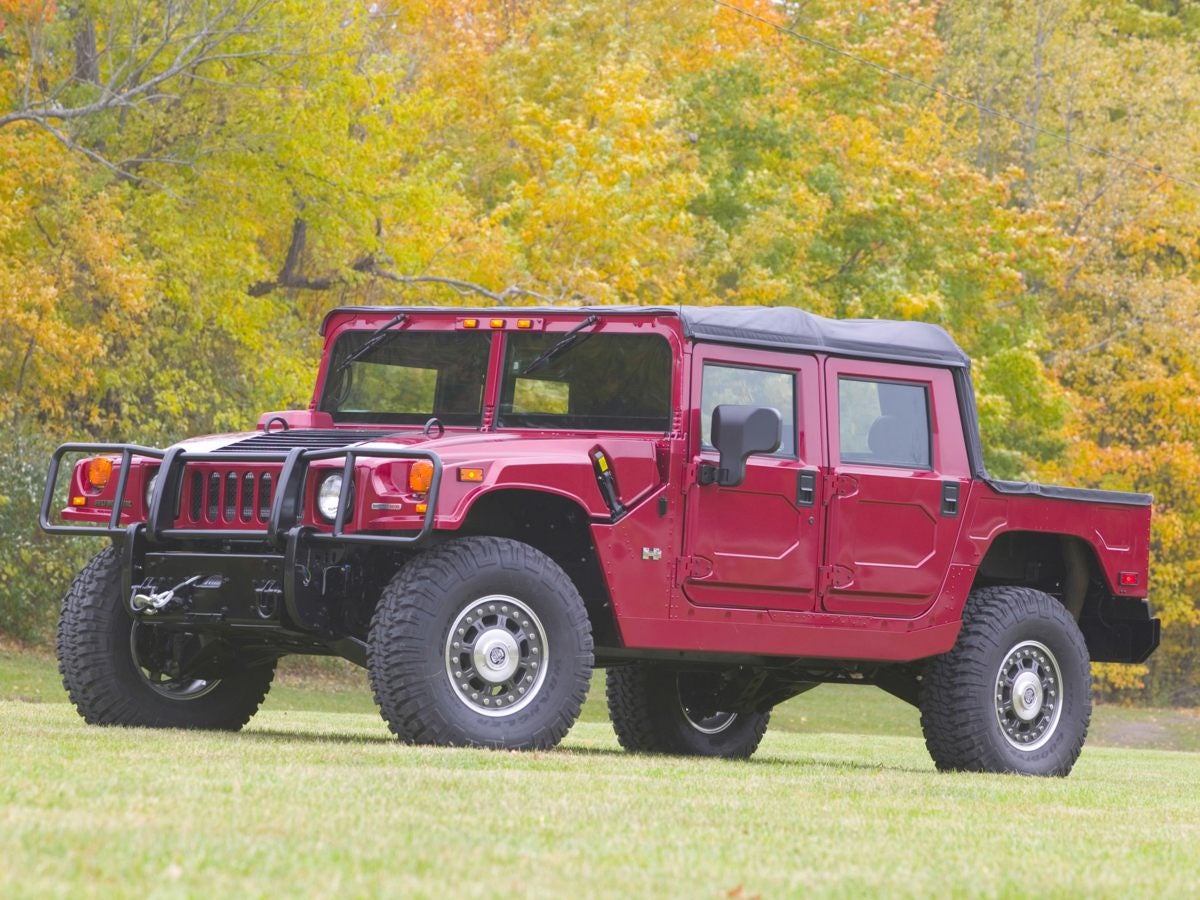

2006 Hummer H1 Open Top
Visit our Store
- Mercedes-Benz of North Olmsted
-
28450 Lorain Rd
North Olmsted, OH 44070-4004
- Sales: 440-266-5069
- Service: 440-256-6881
- Parts: 440-266-5092
Vehicle Information
VIN:
137PH903X6E220945
Stock #:
JM0005A
Model Code:
HMDO
-
Body Style 4D Sport Utility -
Mileage 0
-
Engine 8 Cyl - 6.6 L -
Transmission 5-Speed Automatic Allison 1000 Series -
Fuel Type Diesel
Highlighted Features
Feature availability subject to final vehicle configuration. Please reference window sticker for more info.
- 4WD/AWD
- Heated Seats
- Keyless Entry
- Leather Seats
- Turbo Charged Engine
- Alloy Wheels
- Cruise Control
All Features
- 2-speed transfer case
- Zexel Torsen III torque-biasing differentials
- TorqTrac 4 traction control system
- 4-wheel geared hubs
- Full-time four wheel drive
- 145 amp alternator
- Trailer towing pkg-inc: HD bumper towing shackles, wiring harness
- Welded steel box-section frame w/5 crossmembers
- 130" WB
- 10,300# GVW
- 2453# payload
- 4100# capacity front/6800# capacity rear GAWR
- 4-wheel independent double A-frame suspension w/HD open-end coil springs
- Front stabilizer bar
- HD hydraulic shock absorbers
- LT37/12.50R17 SBR BSW Goodyear Wrangler GS-A tires
- Dura-wall runflat tire system
- Central Tire Inflation System (CTIS)-inc: on-board air compressor, in-dash tire pressure gauge
- 17" one-piece forged aluminum wheels w/beadlock system
- Pwr-assisted variable-ratio steering
- 4-wheel hydraulic inboard-mounted pwr disc brakes
- 4-wheel anti-lock brakes
- Dual fuel tanks (29.5 gallon main/22 gallon auxiliary)
- T6 hardened aircraft aluminum body
- HD brush guard
- H1 Alpha badging
- Rocker panel protection-inc: dual aluminum plates
- Driveline protection-inc: three tubular steel cages
- Canvas top
- Tonneau cover
- HD rear bumper w/towing shackles
- Dual pwr heated mirrors
- Halogen headlamps
- Helicopter lift hooks
- Windshield intermittent wiper/washer system
- 4-passenger seating-inc: (4) premium leather high-back bucket seats
- Heated front seats
- Driver/front passenger adjustable armrests
- Heat & sound insulation
- Overhead storage
- Pwr windows w/driver-side express down feature
- Remote keyless entry-inc: pwr door locks
- Cruise control
- Air conditioning w/auxiliary rear unit
- Heated windshield
- Rear window defroster
- AM/FM stereo w/in-dash 6-disc CD changer-inc: Monsoon premium audio system, rear seat audio
- Glove box
- Cup holders
- Ash tray & lighter
- Pwr outlet
- Deluxe rearview mirror w/compass, temp indicator
- Passenger side lighted visor
- Cargo bed tie-down retainers
- 4-wheel anti-lock brakes
- 3-point seat belts for all seating positions
- TT4 traction control system
- 2.56 Axle Ratio
- 17" x 10" 1-Piece Aluminum Wheels
- Heated Front Bucket Seats
- Premium Leather Seat Trim
- Monsoon Audio System w/6-Disc CD Changer
- 4-Wheel ABS Disc Brakes
- Air Conditioning
- Front Bucket Seats
- Tachometer
- Voltmeter
- ABS brakes
- AM/FM radio
- Alloy wheels
- CD player
- Convertible roof lining
- Driver door bin
- Four wheel independent suspension
- Front anti-roll bar
- Front Dual Zone A/C
- Power Heated Door Mirrors
- Heated Front Seats
- Illuminated Entry
- Integrated roll-over protection
- Leather Steering Wheel
- Low tire pressure warning
- Outside temperature display
- Panic alarm
- Passenger door bin
- Passenger seat mounted armrest
- Passenger vanity mirror
- Power Door Mirrors
- Power Steering
- Power Windows
- Rear air conditioning
- Rear audio controls
- Remote Keyless Entry
- Security system
- Speed Control
- Traction control
- Variably intermittent wipers
- Weather band radio
- Front beverage holders
- Auto-Dimming Rear-View Mirror
- 8 Speakers
- Compass
- Driver's Seat Mounted Armrest
- Premium audio system: Monsoon
- Rear Door Type: N/A
- Cold Cranking Amps @ 0° F (Primary): 600
- Cold Cranking Amps @ 0° F (2nd): 600
- Maximum Alternator Capacity (amps): 145
- Maximum Alternator Watts: - TBD -
- Total Cooling System Capacity (qts): 33
- Gross Axle Wt Rating - Front (lbs): 4100
- Gross Axle Wt Rating - Rear (lbs): 6800
- Curb Weight - Front (lbs): 3924
- Curb Weight - Rear (lbs): 3924
- Gross Vehicle Weight Rating Cap (lbs): 10,300
- Gross Combined Wt Rating (lbs): 17,300
- Dead Weight Hitch - Max Trailer Wt. (lbs): 7000
- Dead Weight Hitch - Max Tongue Wt. (lbs): 700
- Wt Distributing Hitch - Max Trailer Wt. (lbs): 9303
- Wt Distributing Hitch - Max Tongue Wt. (lbs): 930
- Fifth Wheel Hitch - Max Trailer Wt. (lbs): N/A
- Fifth Wheel Hitch - Max Tongue Wt. (lbs): N/A
- Suspension Type - Front: Ind Double A-Frame
- Suspension Type - Rear: Ind Double A-Frame
- Spring Capacity - Front (lbs): - TBD -
- Spring Capacity - Rear (lbs): - TBD -
- Axle Type - Front: Hypoid
- Axle Type - Rear: Hypoid
- Axle Capacity - Front (lbs): - TBD -
- Axle Capacity - Rear (lbs): - TBD -
- Axle Ratio (:1) - Front: 2.56
- Axle Ratio (:1) - Rear: 2.56
- Shock Absorber Diameter - Front (mm): - TBD -
- Shock Absorber Diameter - Rear (mm): - TBD -
- Stabilizer Bar Diameter - Front (in): 1.06
- Brake Type: Pwr
- Brake ABS System: Yes
- Disc - Front (Yes or ): Yes
- Disc - Rear (Yes or ): Yes
- Front Brake Rotor Diam x Thickness (in): 12.0 x - TBD -
- Rear Brake Rotor Diam x Thickness (in): 12.0 x - TBD -
- Front Tire Size: 37X12.5R17
- Rear Tire Size: 37X12.5R17
- Front Tire Capacity (lbs): - TBD -
- Rear Tire Capacity (lbs): - TBD -
- Revolutions/Mile @ 45 mph - Front: - TBD -
- Revolutions/Mile @ 45 mph - Rear: - TBD -
- Front Wheel Size (in): 17 x -TBD-
- Rear Wheel Size (in): 17 x -TBD-
- Front Wheel Material: Aluminum
- Rear Wheel Material: Aluminum
- Steering Type: Power Variable Ratio
- Steering Ratio (:1), On Center: 13
- Steering Ratio (:1), At Lock: 16
- Turning Diameter - Curb to Curb (ft): 51
- Turning Diameter - Wall to Wall (ft): - TBD -
- Frame Type: Box Ladder
- Fuel Tank Capacity, Approx (gal): 28.5
- Aux Fuel Tank Capacity, Approx (gal): 24
- Fuel Tank Location: Mid-ship
- Aux Fuel Tank Location: Behind Rear Axle
- Side Door Type: - TBD -
- Wheelbase (in): 130.0
- Length, Overall w/rear bumper (in): 184.5
- Width, Max w/o mirrors (in): 86.5
- Height, Overall (in): 79.0
- Overhang, Front (in): N/A
- Overhang, Rear w/bumper (in): - TBD -
- Ground to Top of Load Floor (in): - TBD -
- Ground Clearance, Front (in): 16.0
- Ground Clearance, Rear (in): 16.0
- Rear Door Opening Height (in): - TBD -
- Rear Door Opening Width (in): - TBD -
- Side Door Opening Height (in): - TBD -
- Side Door Opening Width (in): - TBD -
- Step Up Height - Front (in): - TBD -
- Step Up Height - Side (in): - TBD -
- Cargo Area Length @ Floor to Console (in): - TBD -
- Cargo Area Length @ Floor to Seat 1 (in): 76.5
- Cargo Area Length @ Floor to Seat 2 (in): 44.0
- Cargo Area Width @ Beltline (in): - TBD -
- Cargo Box Width @ Wheelhousings (in): - TBD -
- Cargo Box (Area) Height (in): - TBD -
- Cargo Volume to Seat 1 (ft³): - TBD -
- Cargo Volume to Seat 2 (ft³): - TBD -
- Cargo Volume to Seat 3 (ft³): - TBD -
- Cargo Volume to Seat 4 (ft³): - TBD -
- Passenger Capacity: 4
- Front Head Room (in): 44.4
- Front Leg Room (in): 44.1
- Front Shoulder Room (in): 77.1
- Front Hip Room (in): 23.1
- Second Head Room (in): 42.9
- Second Leg Room (in): 29.9
- Second Shoulder Room (in): 77.1
- Second Hip Room (in): 22.4
- Vehicle Name: HUMMER H1
- Body Style: 4 Door Open Top
- Body Code: 130" WB
